AudioResource, AudioClip, AudioRandomContainer Interactions

Sirawat Pitaksarit / 5argon

Oct 9, 2025 • 9 min read

Long time no see. I'm currently trying to make a SFX player audio plugin based on AudioResource, a new base class that covers both AudioClip and AudioRandomContainer (Unity 6 addition). I have several questions that the document didn't go into details that I had to research myself. I hope this article can impart this niche knowledge to those interested.

I'll start with reiterating prior behaviours first. (The gang consists of : AudioMixer AudioMixerGroup AudioSource AudioClip) Then I'll get to the AudioResource and AudioRandomContainer which is our new stuff whether they conform to the previous functions or not.

Test Set

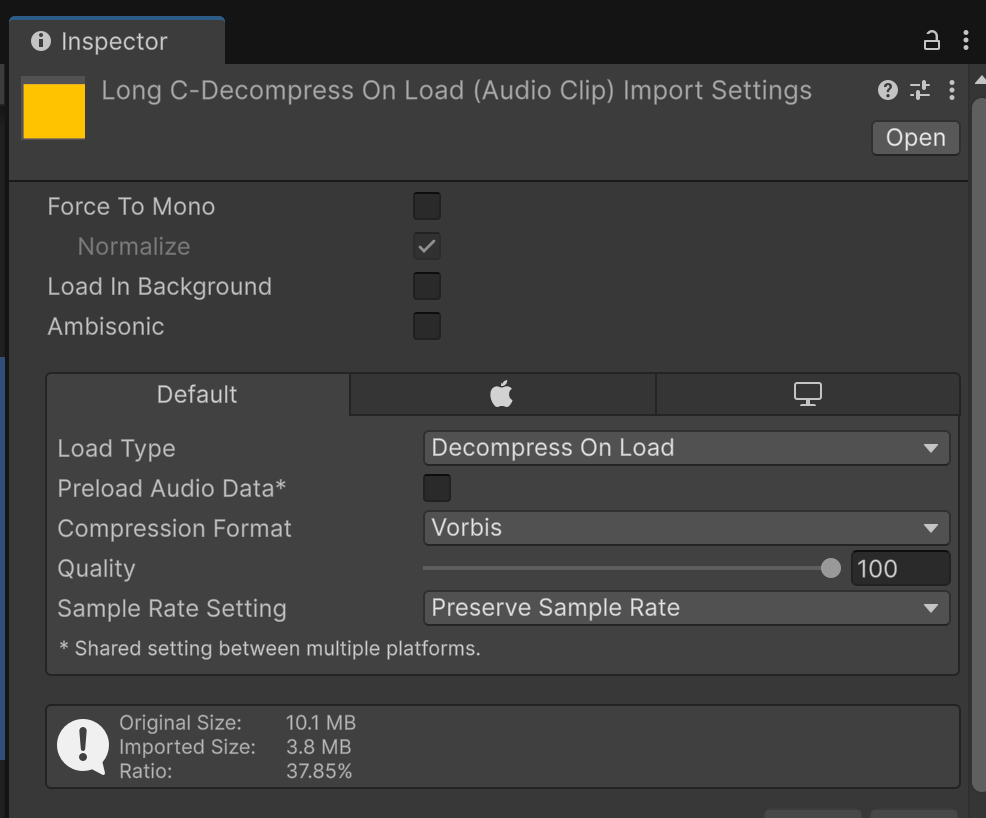

For audio memory testing, I'll use this long audio file with 10 MB original size and 3.8 MB compressed size. And I'll change up Load Type and Preload Audio Data on each study.

I also have a shorter 1 second file when the test requires a play to end.

AudioMixer and Profiler

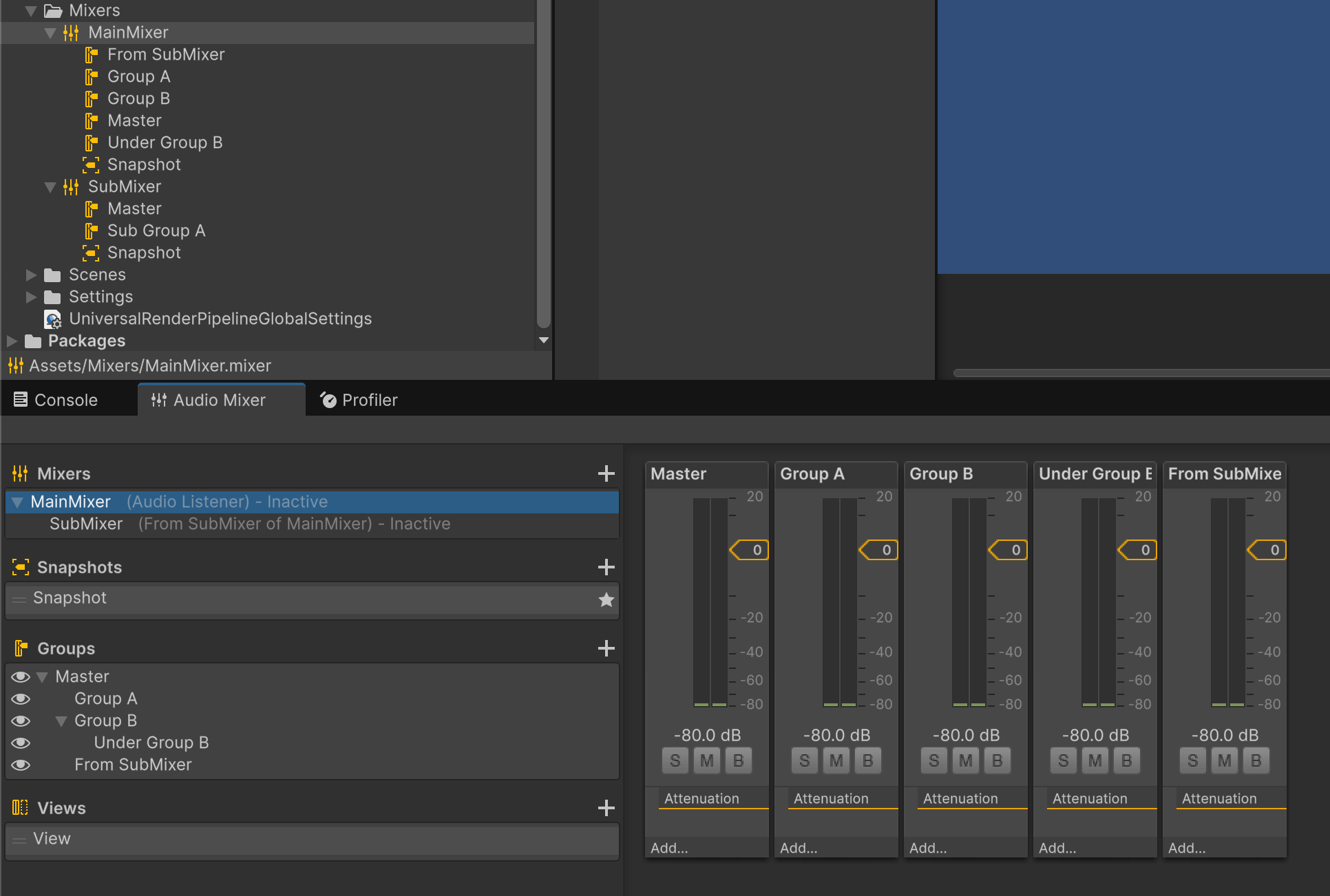

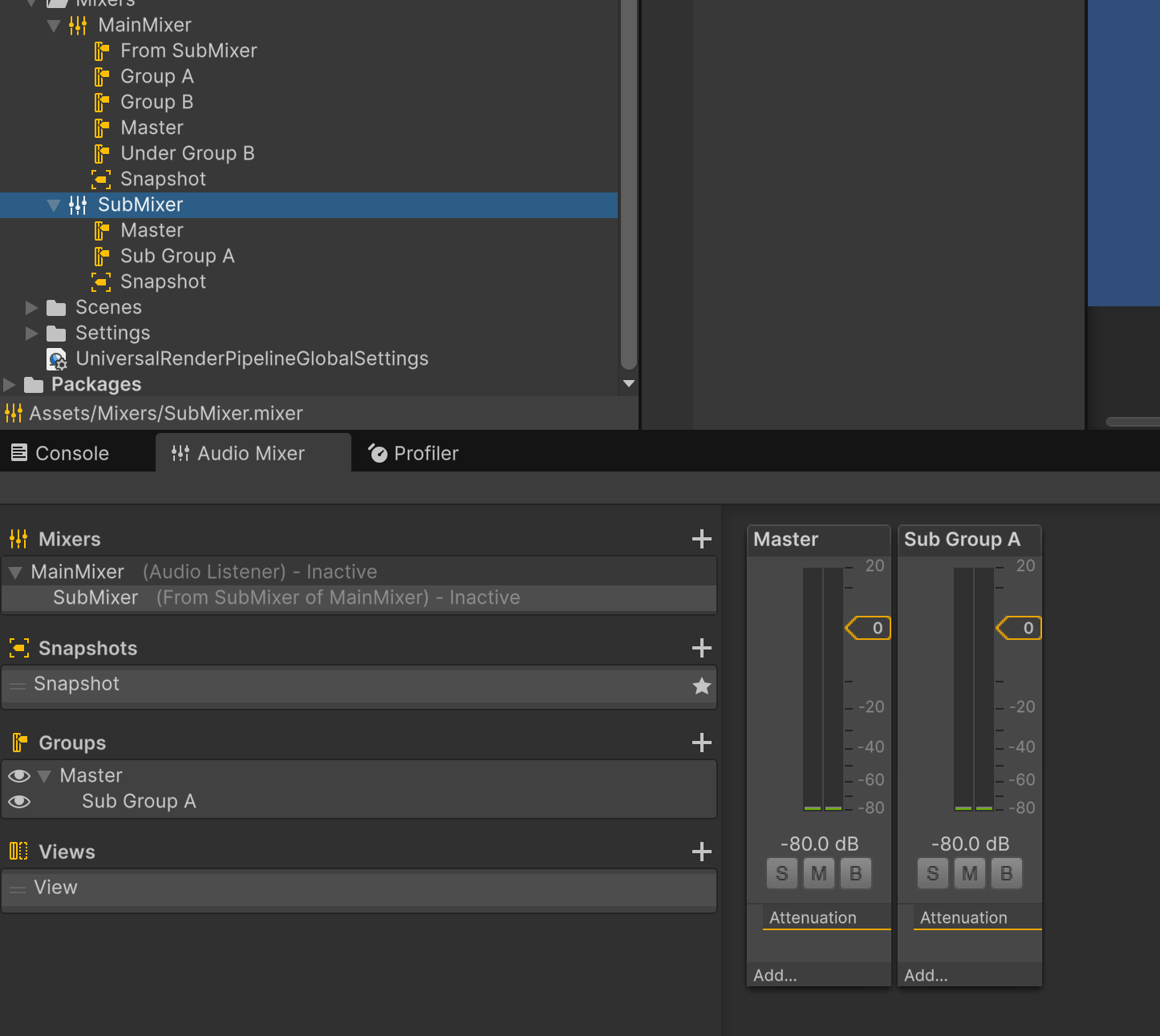

In a 2 AudioMixer setup MainMixer + SubMixer, where MainMixer has several of its own AudioMixerGroup, and one called "From SubMixer" that gets the audio from SubMixer.

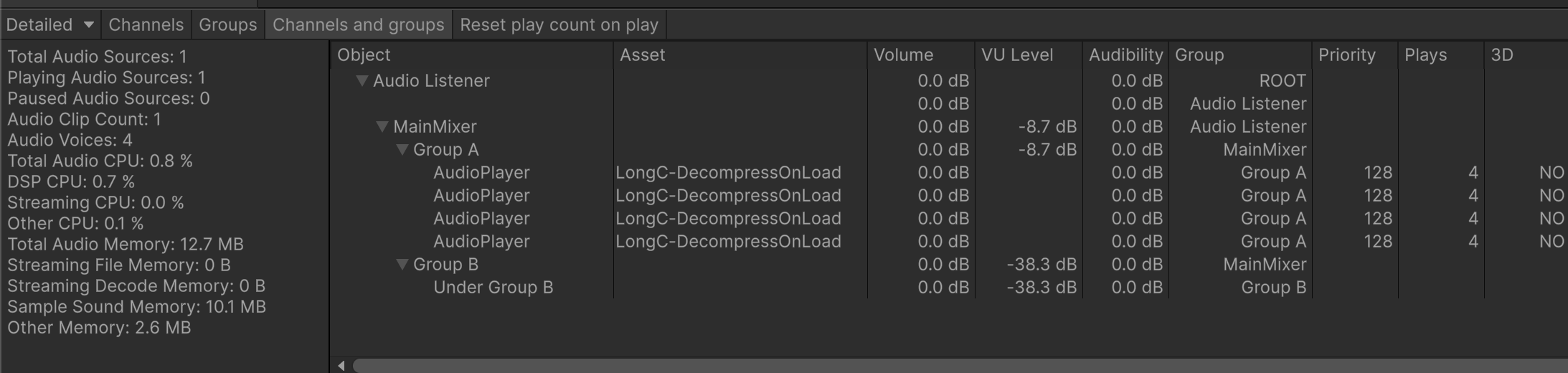

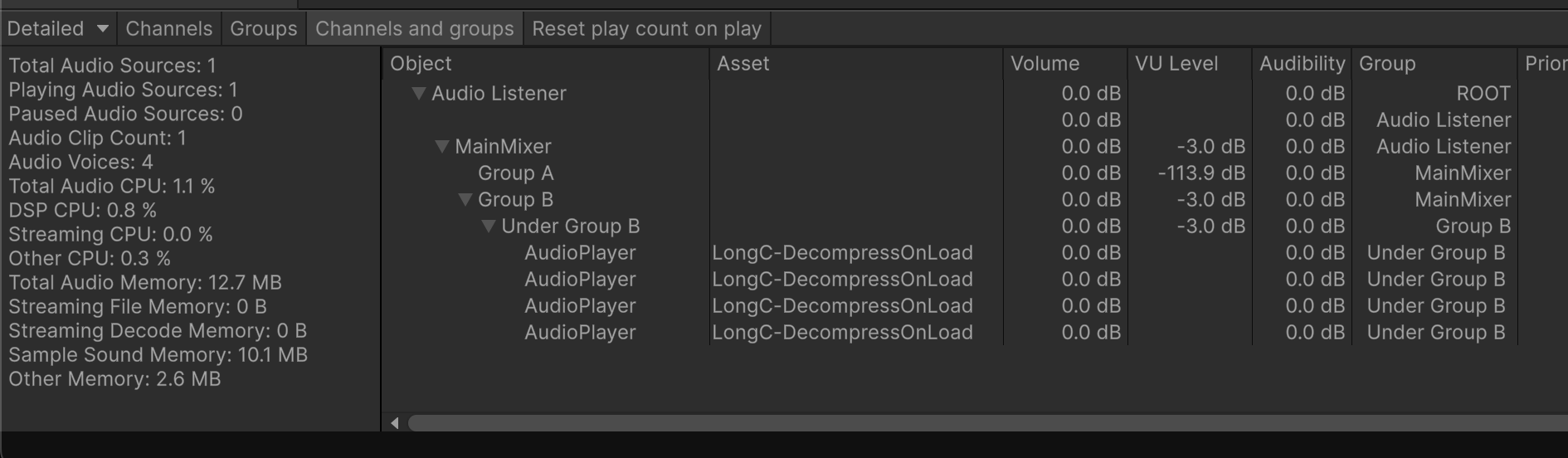

They are presented in the Profiler like this (showing 4 play one shots currently playing under one of the mixer group) :

AudioClip Memory

If scene has asset reference that eventually leads to AudioClip and it has Preload Audio Data, then it takes memory immediately. How much depends on Load Type. Streaming Load Type cannot have Preload Audio Data.

If Preload Audio Data is not checked, then it is loaded on its first play.

audioClip.UnloadAudioData() can unload audio that was loaded with Preload Audio Data.

Resources.UnloadUnusedAssets() can work similarly to audioClip.UnloadAudioData() without the need to have AudioClip object reference. But the definition of "used" is by following objects in memory, and that means everything in the hierarchy are considered used. Resources.UnloadUnusedAssets() cannot unload the audio memory if some GameObject is still referencing it, even not actually playing it.

AudioSource.PlayOneShot

The argument is still AudioClip, not AudioResource. Therefore you cannot use RandomAudioContainer this way. Understandable, because it is possible to configure RandomAudioContainer to be infinitely repeating according to the playlist.

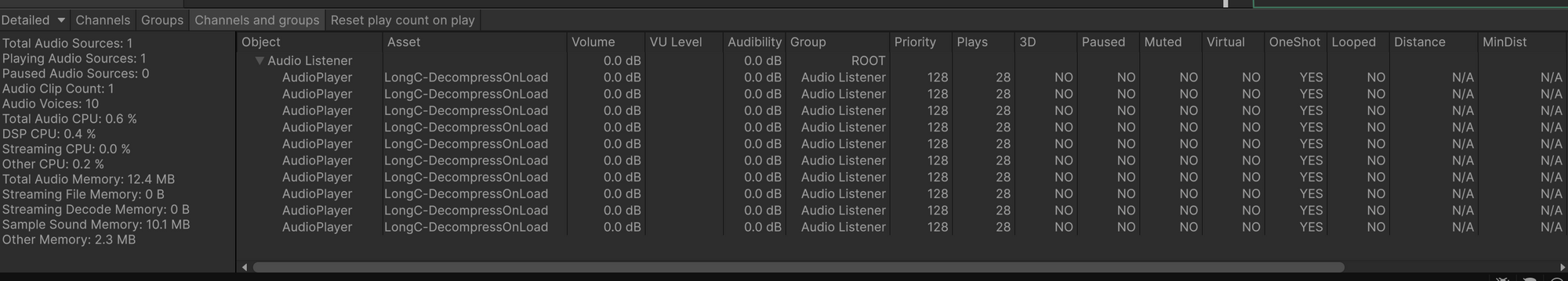

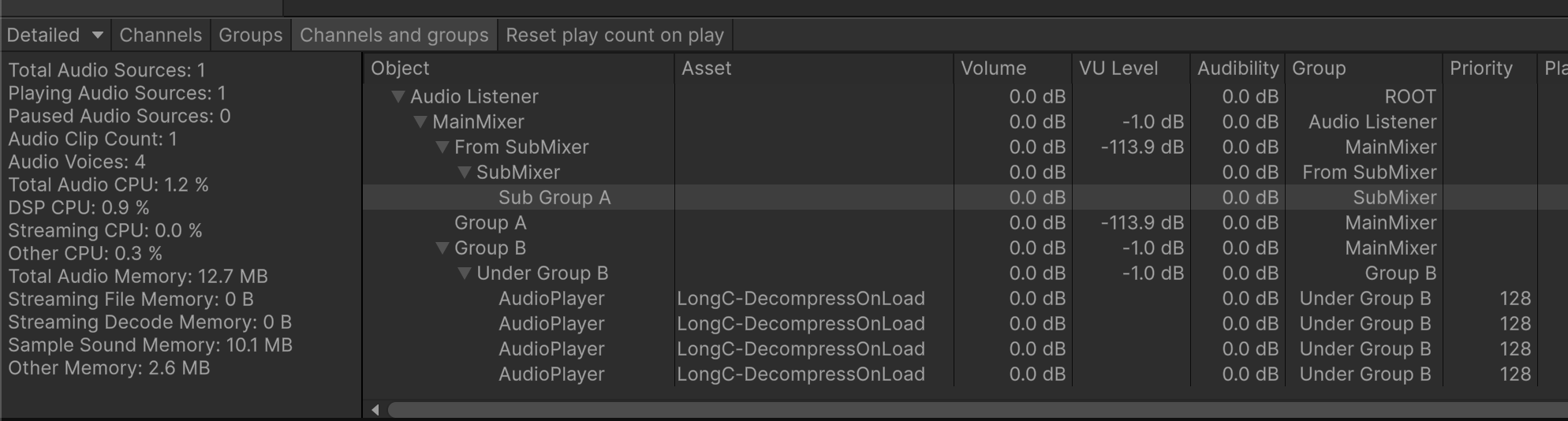

In the Profiler, stacked PlayOneShot of the same long AudioClip shows up as new "Audio Voices" without incrementing "Total Audio Sources".

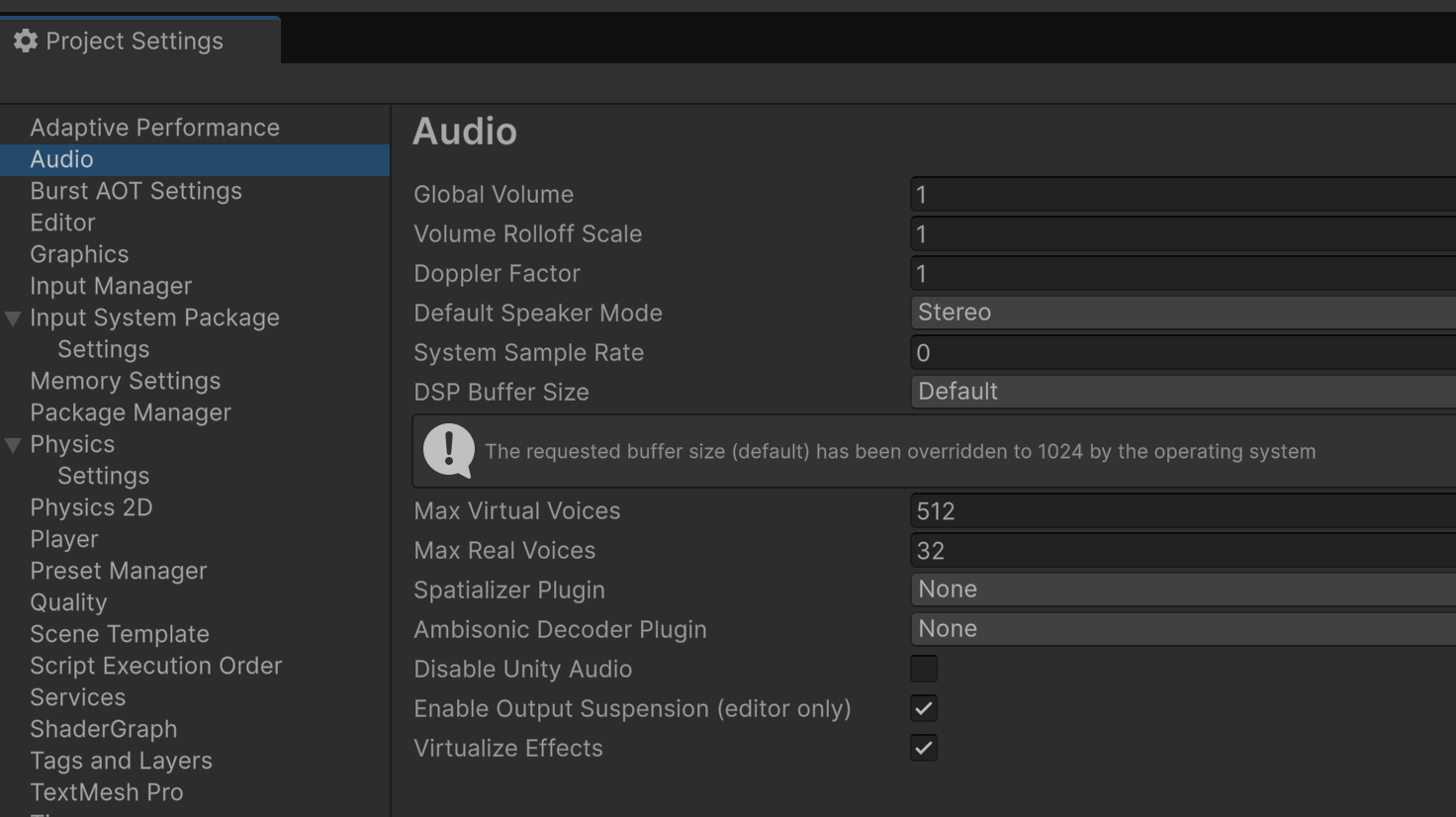

By the way, this "Audio Voices" is what will be subjected to culling according to Max Real Voices in the Project Settings.

If audioClip.UnloadAudioData() is called while PlayOneShot of that AudioClip is playing, it automatically stops all such one shot instances and the memory is unloaded.

While one shot audio are ongoing, changing AudioSource's Volume, Pitch, AudioMixerGroup output will live update all of the running one shot instances. This shows how I can move all the one shots to another place in the mixer tree at once.

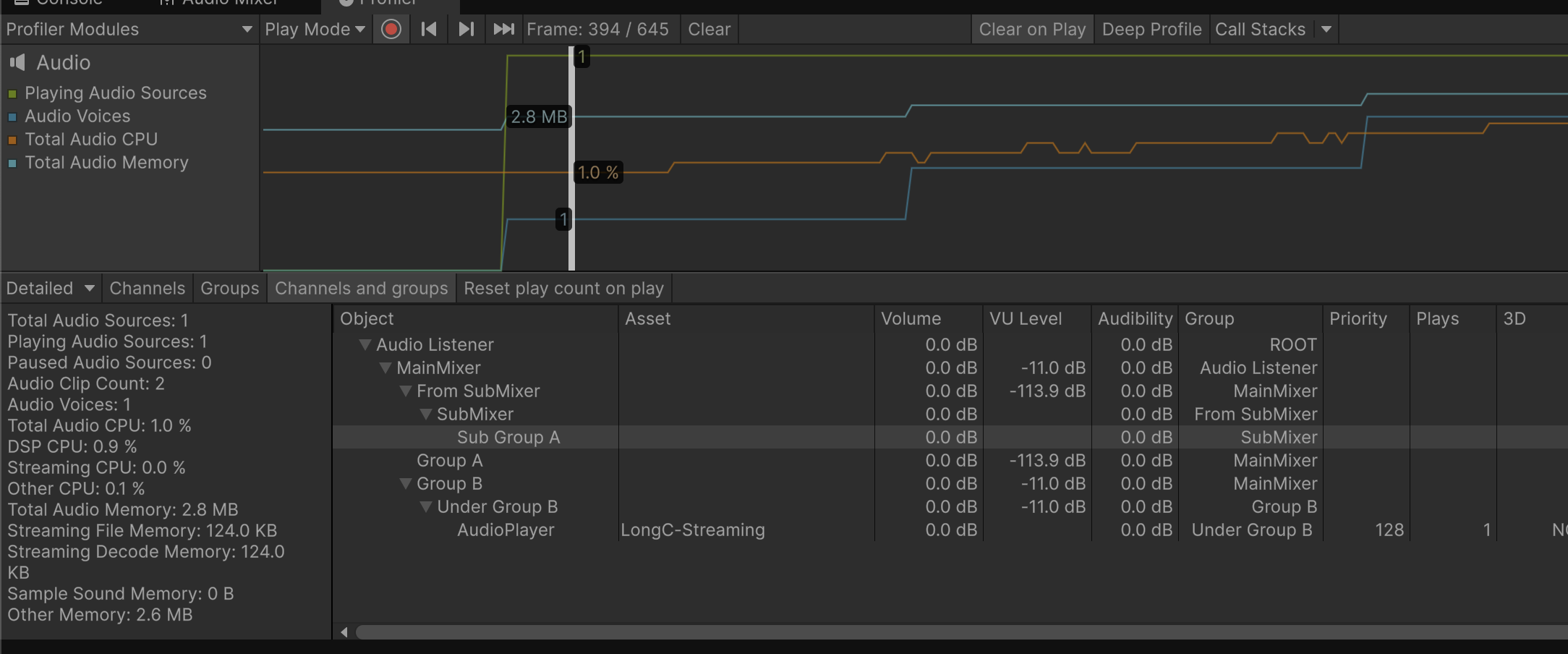

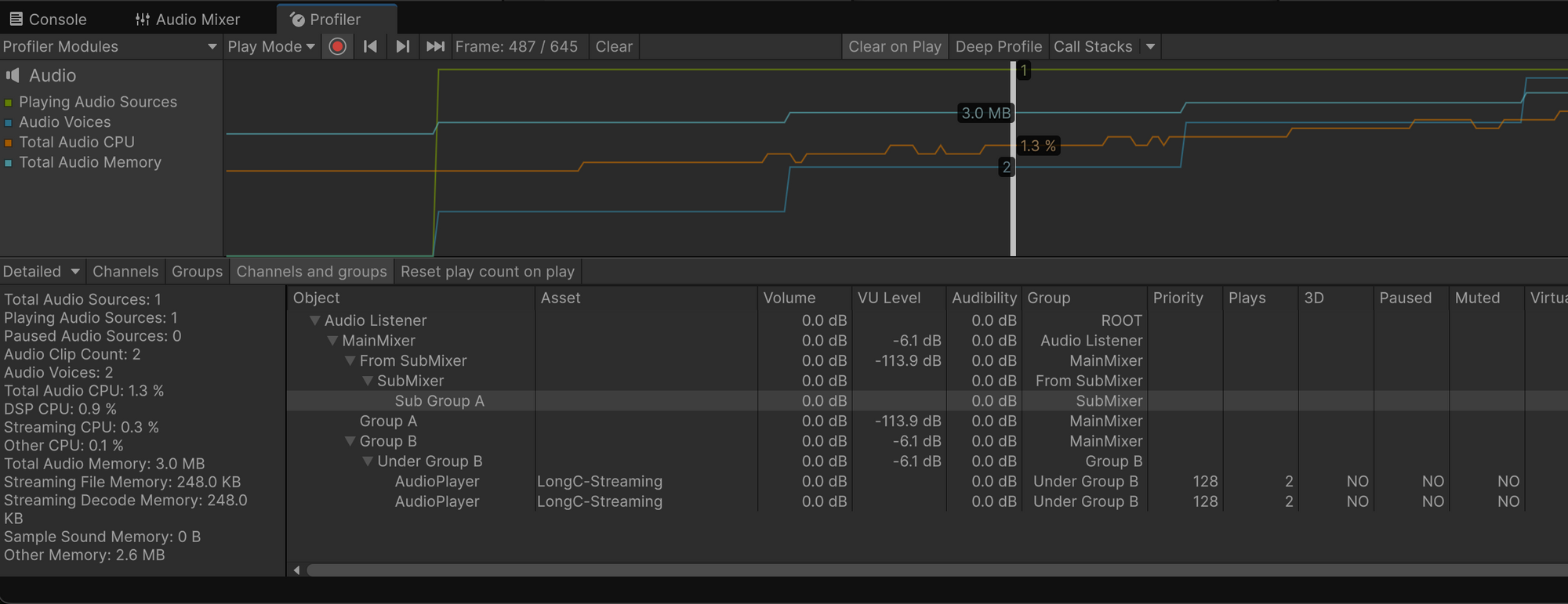

On Load Type : Streaming, it seems to take fixed amount of memory (124 KB) to stream the audio no matter how long it is. It has a disadvantage that each stacking one shot instance will need its own 124 KB to stream concurrently, compared to Compressed in Memory or Decompress on Load that each instance can share the same memory. The 2nd image shows that streaming memory is now 248 KB for 2 consecutive streaming plays.

AudioRandomContainer

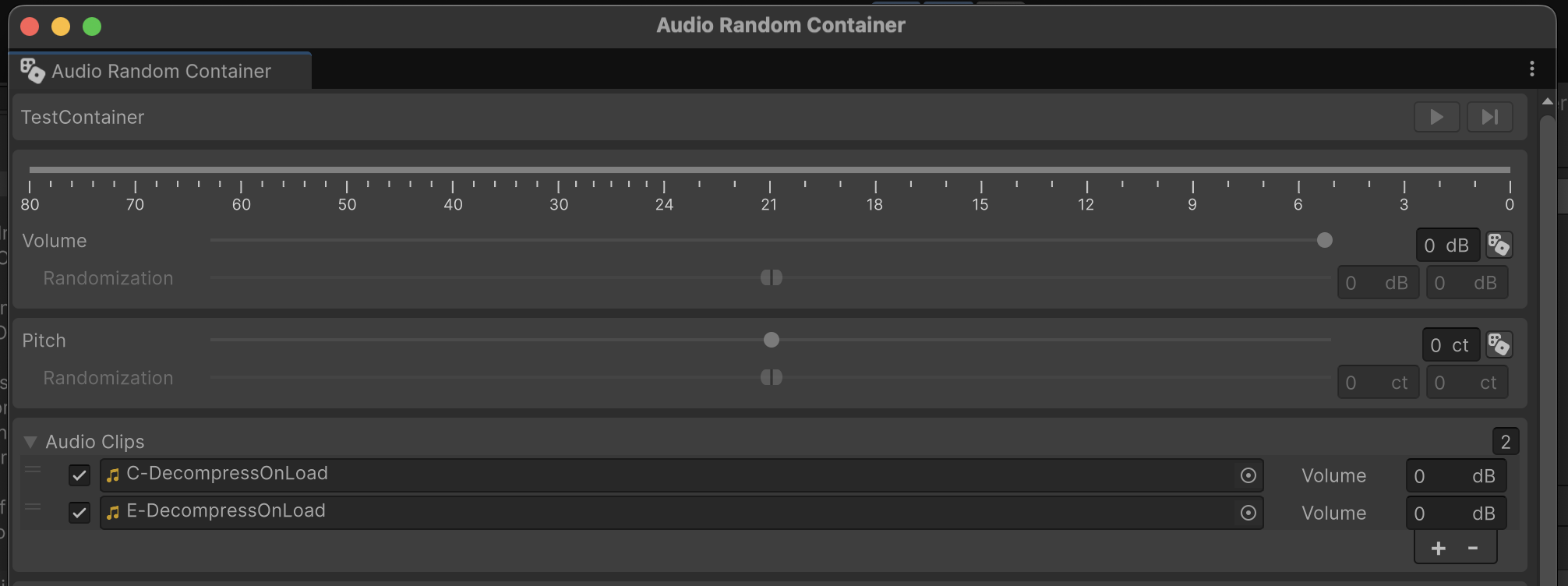

With a default AudioRandomContainer that plays 2 clips back to back:

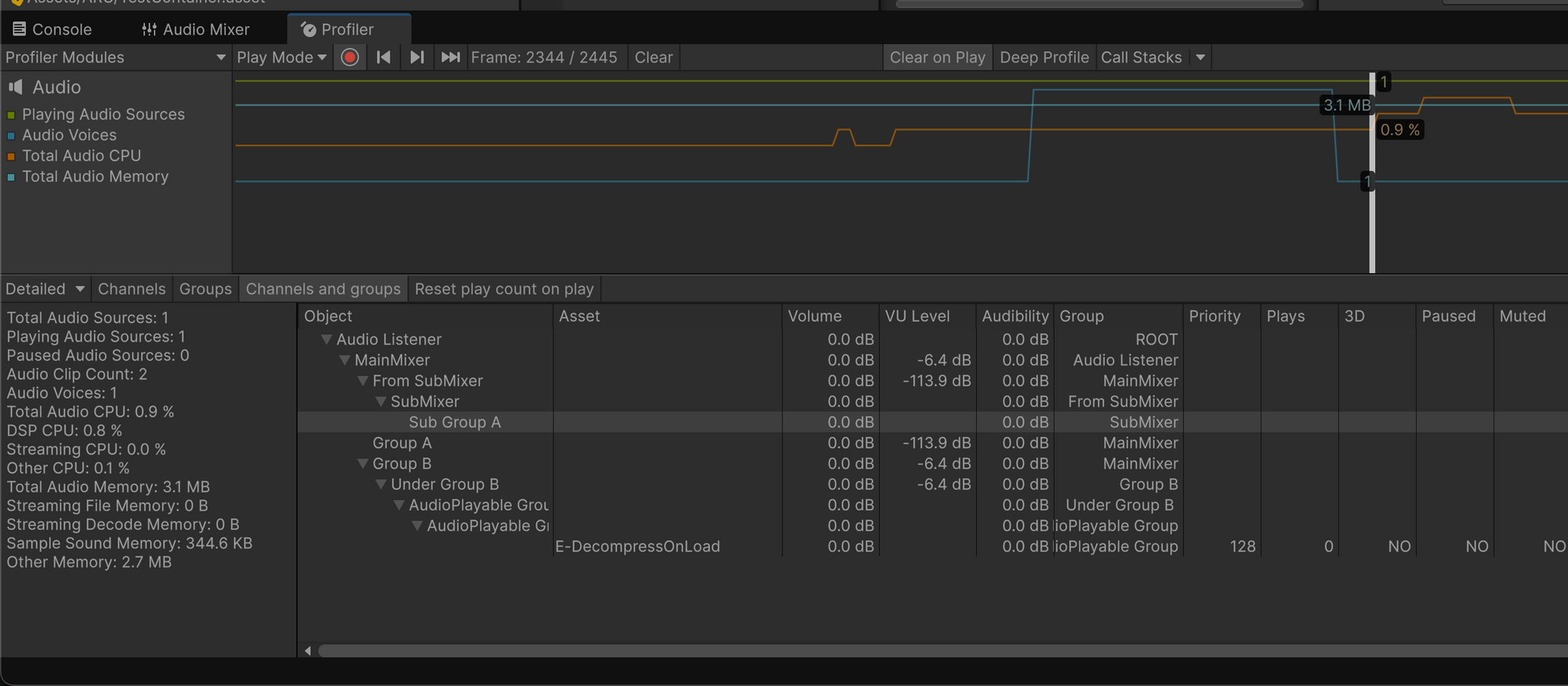

The Profiler shows interesting technical aspect that is happening under the hood.

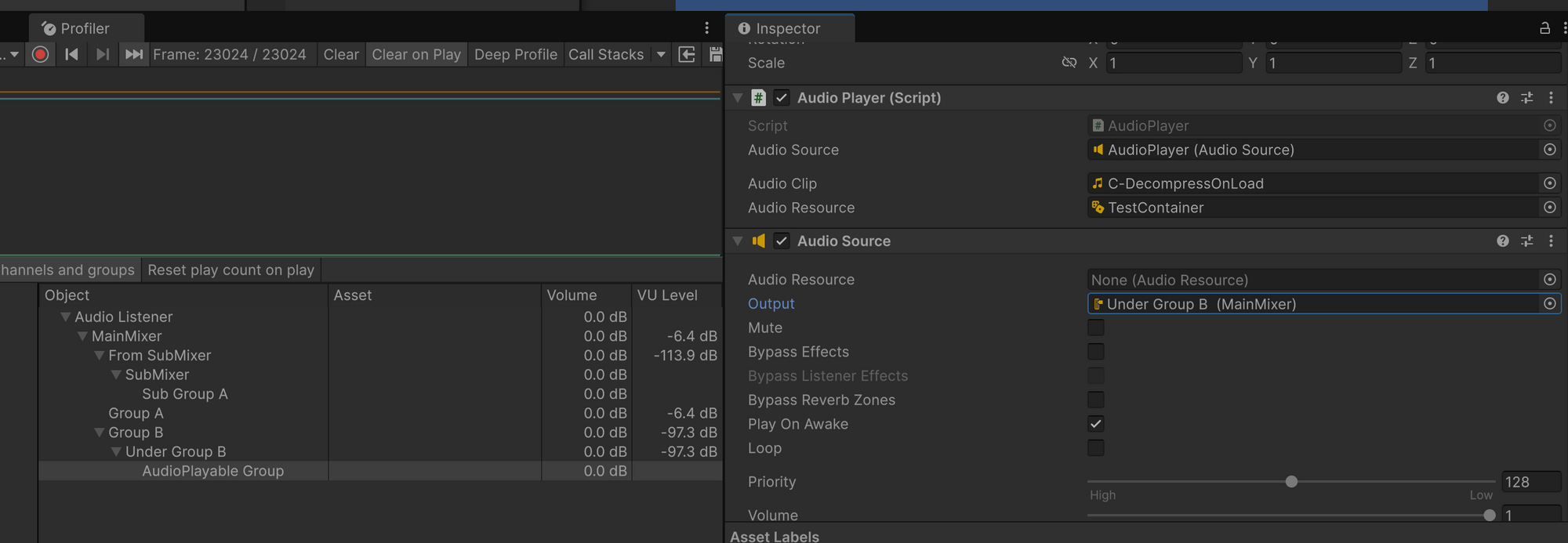

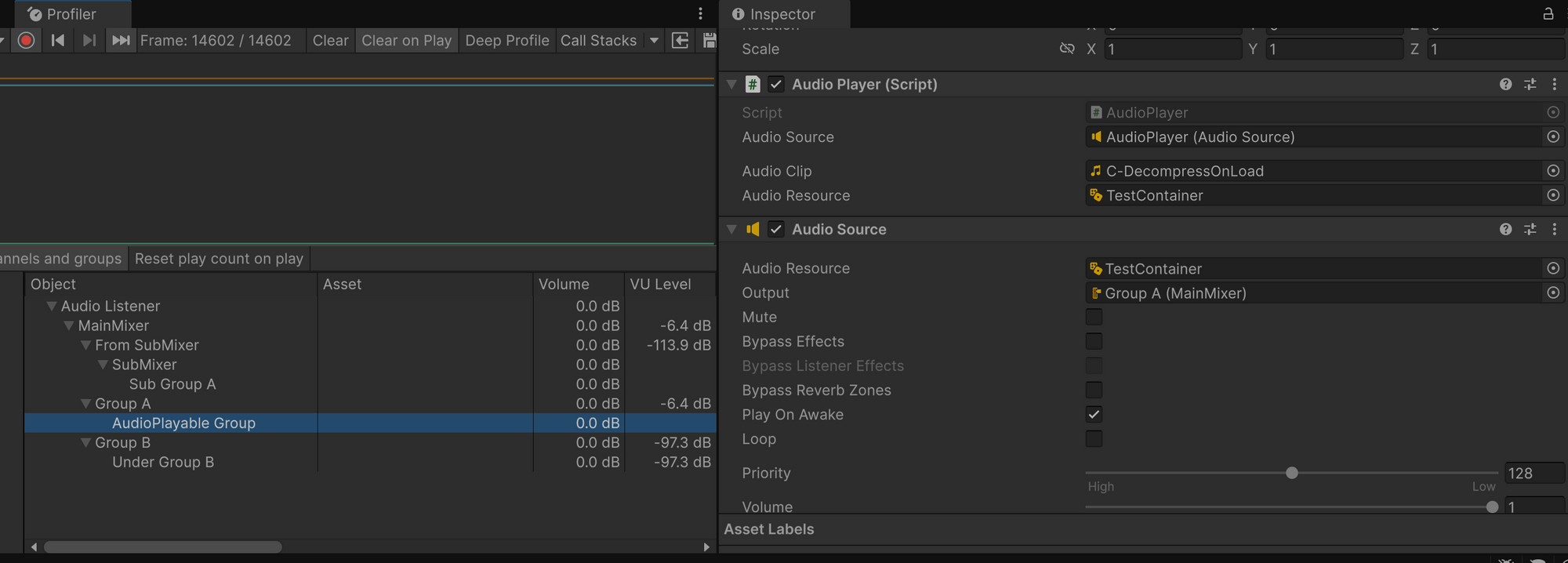

For any AudioSource that had played RandomAudioContainer even once, it starts managing an invisible audio playables called AudioPlayable Group, revealing that the "backend" of RandomAudioContainer is probably playable graphs. If I attempt to change AudioMixerGroup, even if AudioResource is removed from the slot, the Profiler shows that this AudioPlayable Group is being moved to different part of the tree automatically.

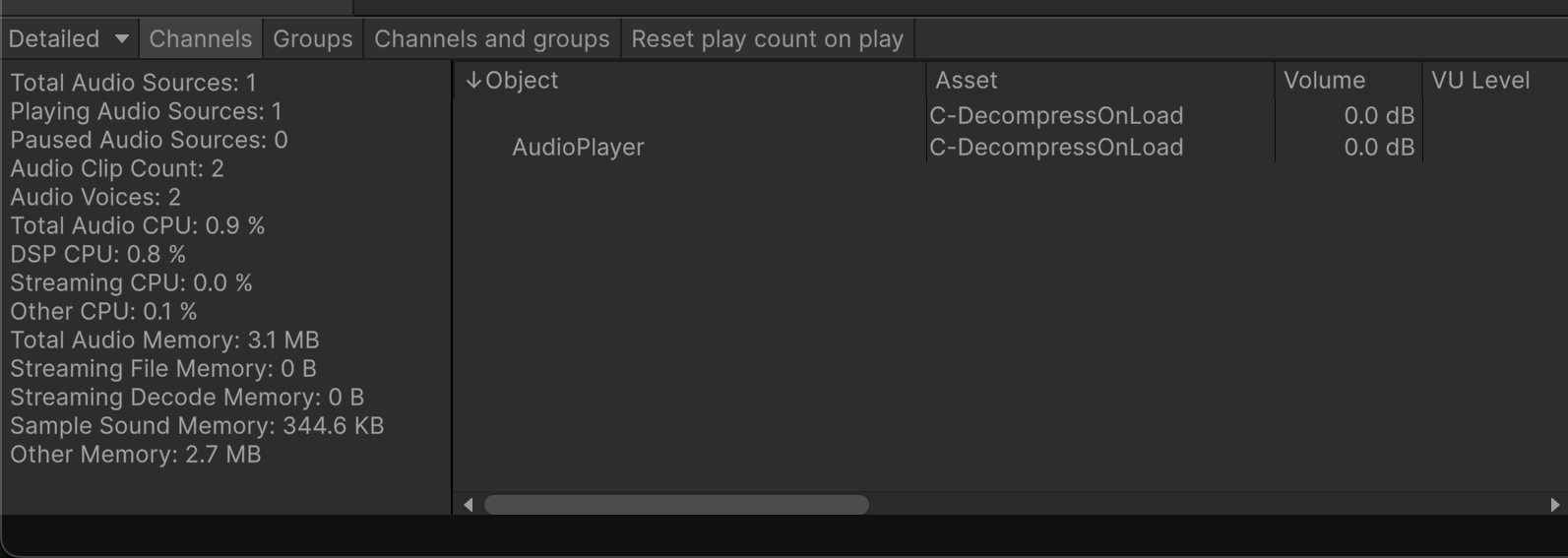

Unlike Play One Shot or Play on AudioClip, the Object name is blank for any plays that occured within AudioRandomContainer. This image below shows "Channels" mode without the groups so you can see that the name is blank. I play both AudioClip way and AudioRandomContainer way at the same time.

Moreover, pausing Unity editor will remove the blank name channels from the Profiler on that frame. Because inspecting the Profiler automatically pauses the editor, you need to move the frame head back by one frame to see the audio played as a part of AudioRandomContainer you want to see.

It appears that there is a short moment where Audio Voices count is 2 while transitioning to the next clip, despite the container didn't allow the clips to overlap.

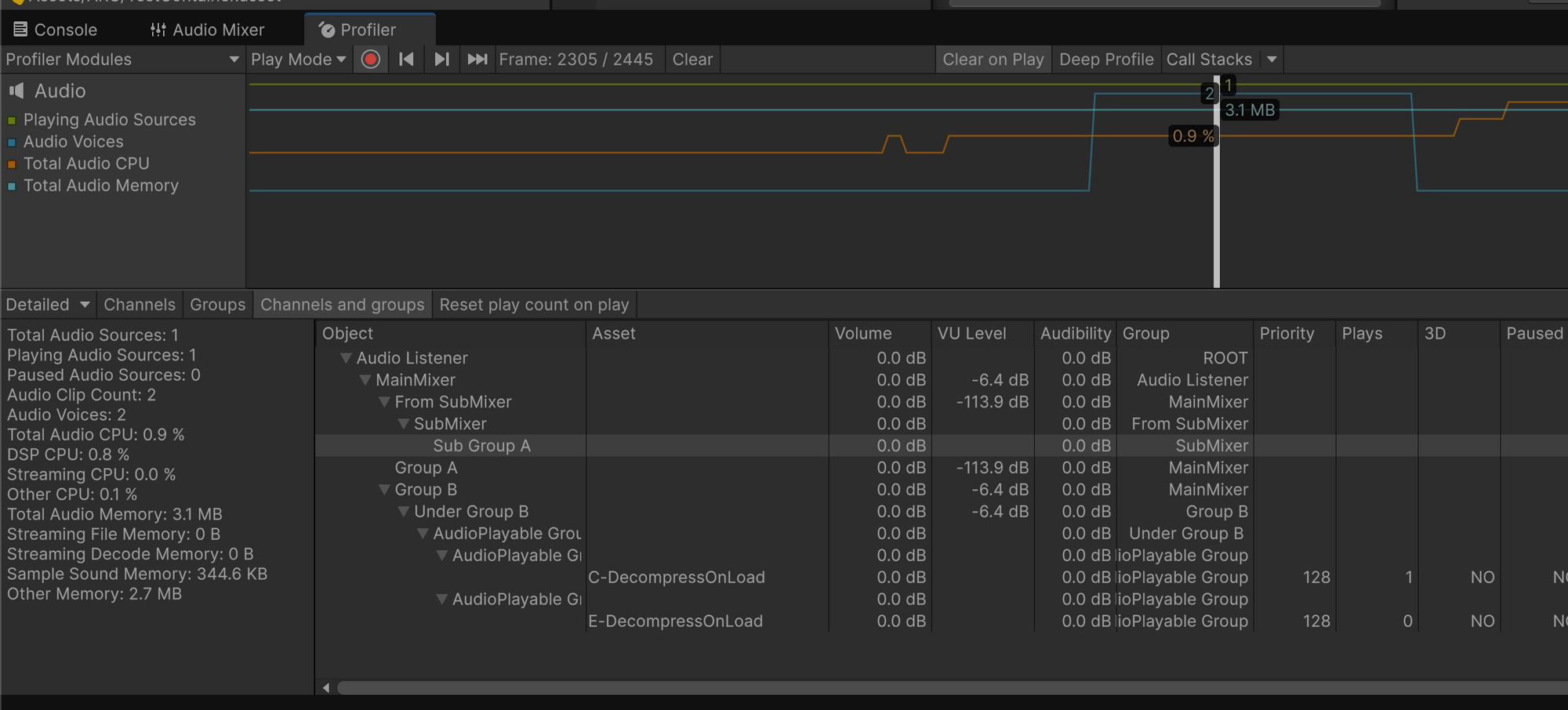

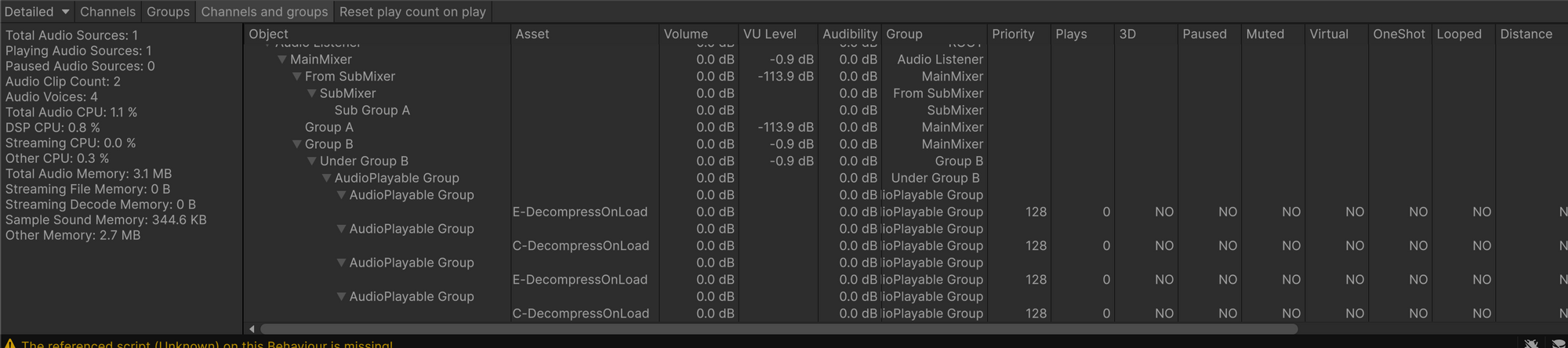

One more interesting thing is that, while the first sound nest the channel under AudioPlayable Group, at the overlapping moment, and even after, you can see there are one more nested layer of AudioPlayable Group. It seems there is a complex logic that decide how many playable graph group it needs under the hood to run. It should not affect performance, just make this tree a little bit cluttered.

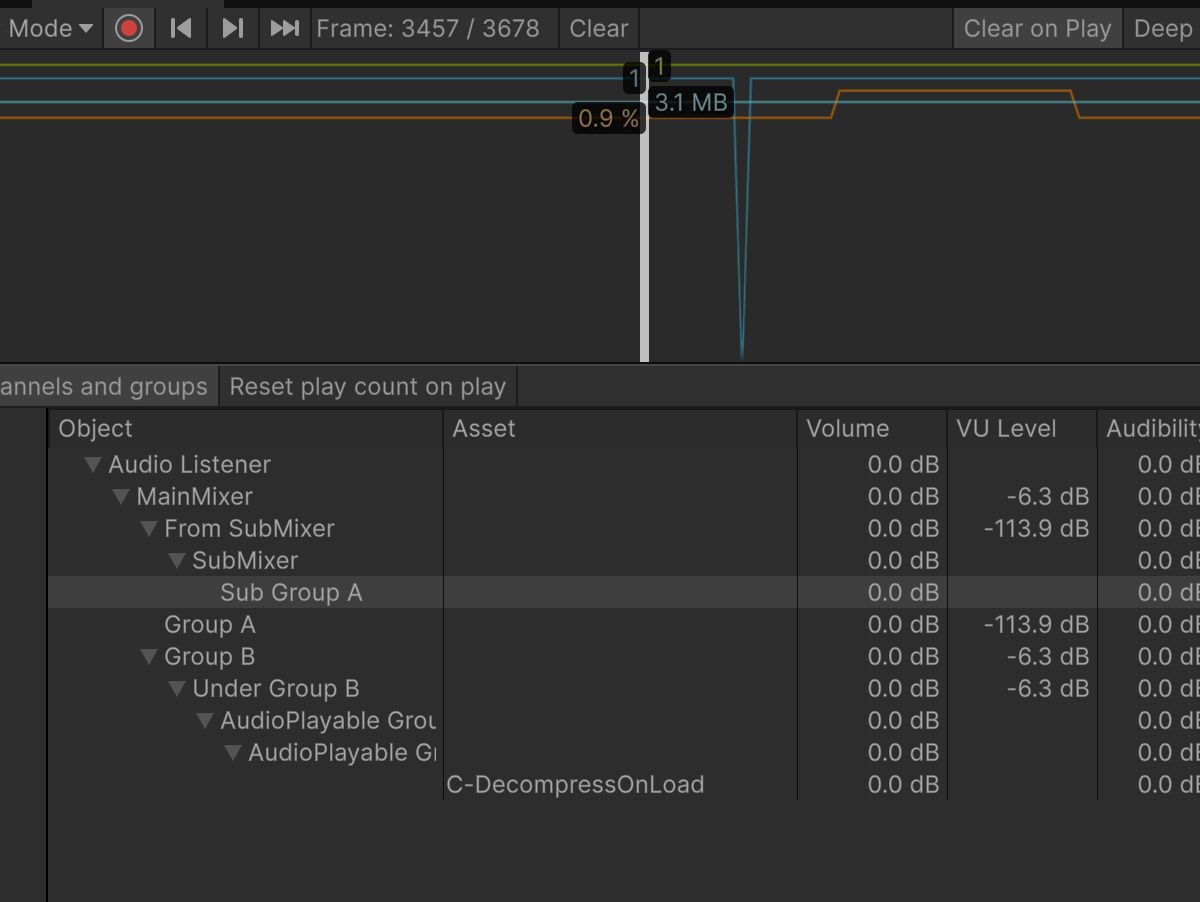

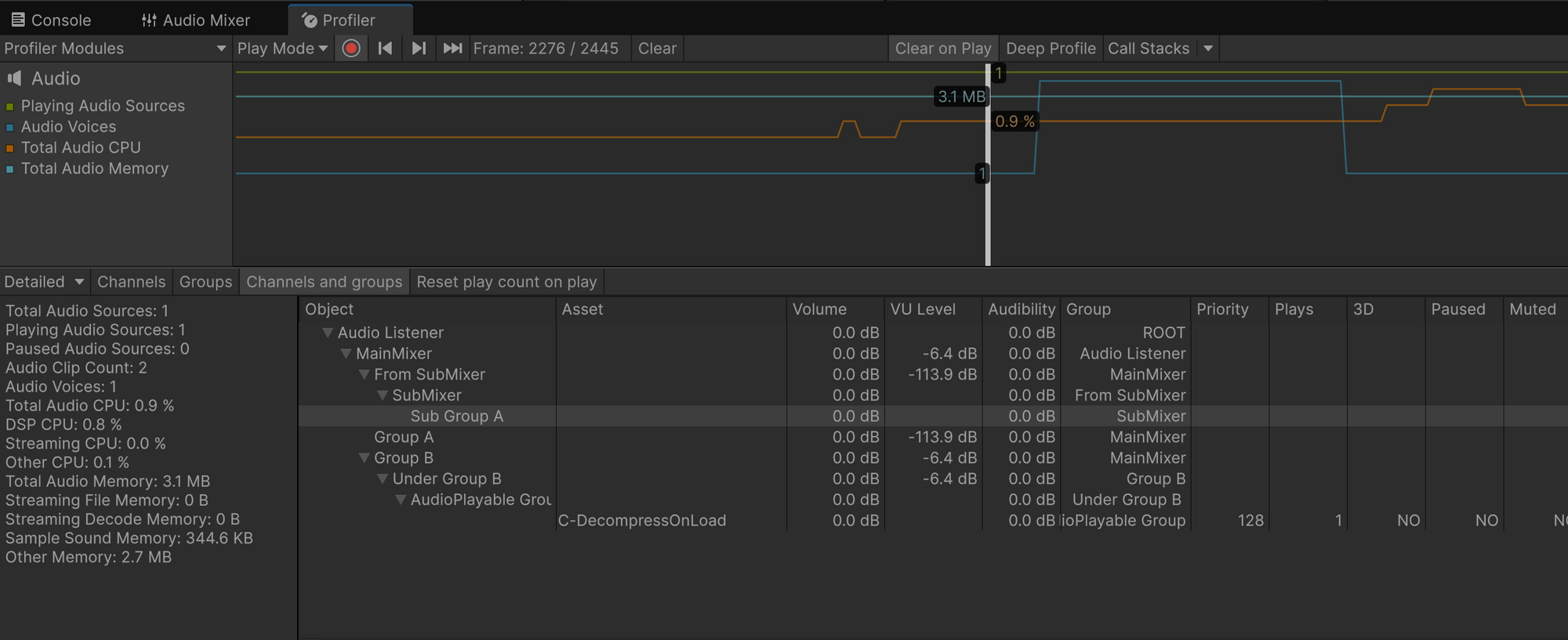

If we allow short break on the transition, the Profiler now shows a more expected graph which the Audio Voices dropped from 1 to 0 and then back to 1 when the next clip plays.

If you are going crazy on back to back plays, it might worth keeping in mind that short instance where Audio Voices are bloated, just in case you might be close to hitting the limit.

audioSource.Pause() and Unpause() works as expected, if you pause and unpause repeatedly, it will go forward in the sequence bit by bit, including the wait time.

As for memory usage, it seems to do it clip by clip as expected. For example, I have sequential ARC of 10 MB each like this, with Preload Audio Data as false. It correctly starts as neither loaded. And when the ARC is played, only the first one is loaded because the 2nd is scheduled to be played with offset after the first one.

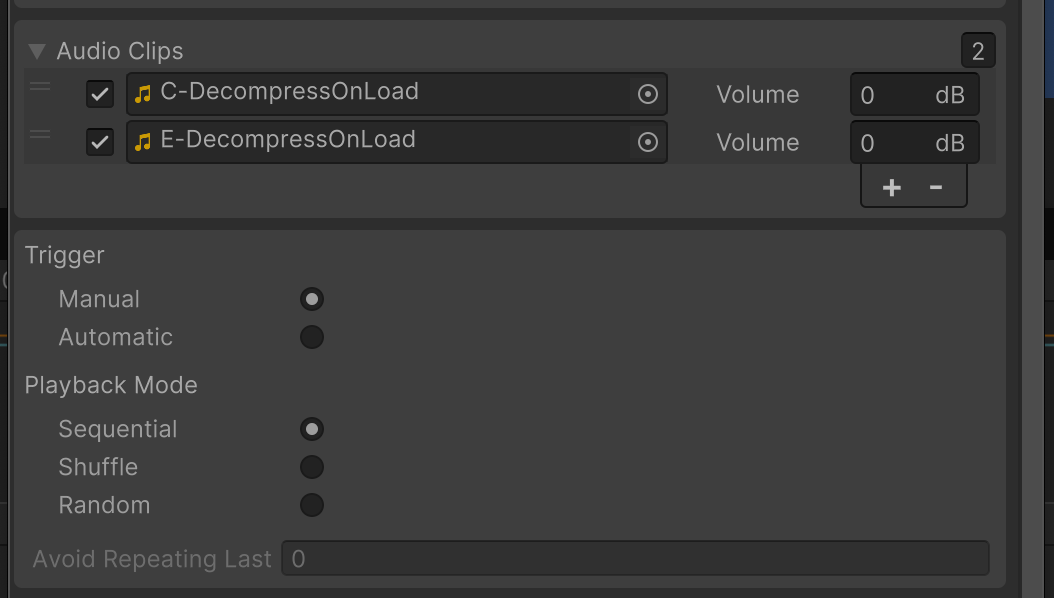

The audioSource.Play() while ARC's Trigger Mode is Manual has a self-overlaying effect similar to PlayOneShot. This is very different from .Play() while the asset is AudioClip which when called repeatedly, it would just abruptly stop and restart the clip. This example shows .Play() called consecutively 4 times, while Trigger is Manual and Playback is Sequential. It results in C and E graphs being added 2 times each. (4 total) Basically .Play() fires a trigger once.

.Pause() and .Unpause() is able to altogether pause all overlapping instances and resume them in one go. Pretty cool actually.

When Trigger is Automatic, it works more like it was previously. Repeated Play() call will restart the whole playlist. For example if it is halfway through "E" and Play() was called again, the E audio abruptly stops and it starts over from the beginning of C.

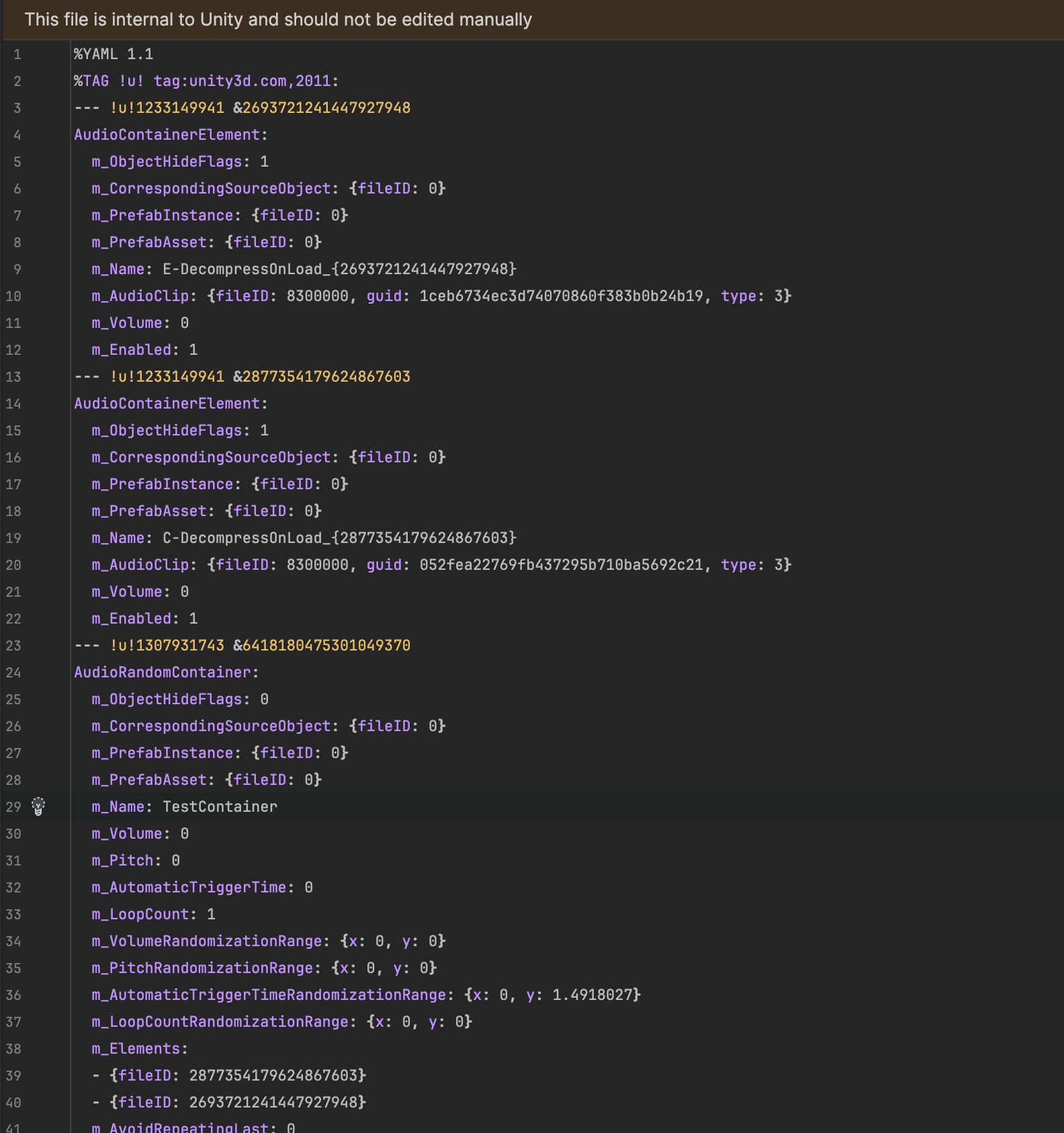

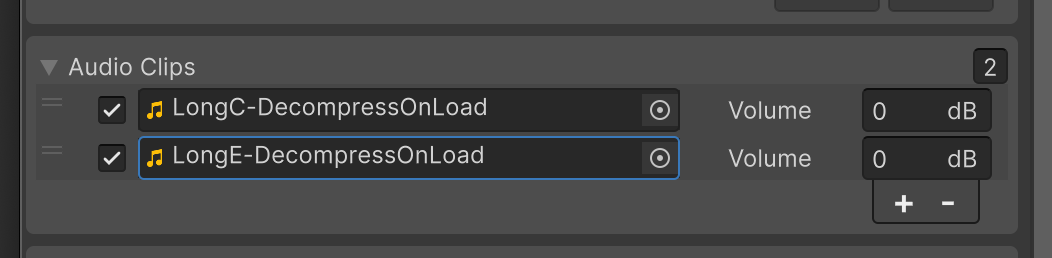

AudioRandomContainer is also currently not very extensible. The class is internal unlike AudioResource and AudioClip. And attempting to use reflection or direct .asset file writing might be brittle because they don't want you to do that. This is a YAML file of an ARC. Each element added to the AudioClip array is in fact not just AudioClip but AudioContainerElement, because it needs to hold adjustable volume and enabled checkbox per entry as well. Notice how m_Element links to each AudioContainerElement with fileID. (Related article)

Because AudioRandomContainer is entirely internal you lose control on AudioClip that it is made of, for example what if you want to audioClip.UnloadAudioData() to everything that's in the playlist of AudioRandomContainer?

Unity had bad track record on audio playables

Around 2022 to 2024, I have been developing an audio plugin where it plays everything with audio playable graph. It supports volume, pitch, sequencing, start midway, and chaining up audio playable assets endlessly, etc. It's almost the same feature set you see in AudioRandomContainer right now.

I took like 1~2 years to finish the plugin, only to discover that in production use when I put my playable-backed SFX slinging engine to test I was flooded by undebuggable FMOD warnings and sometimes runtime error. I had to pivot my plugin hard so everything is played by the old PlayOneShot.

Today now that I discovered AudioRandomContainer will end up connecting the audio graph I'm not having very good feeling about this. AudioRandomContainer looks great even if to just wrap a single AudioClip just so you could access its per-asset volume attenuation. But can I really bet my entire game's audio on this?

What about my plugin?

I have been developing this plugin for 3 years or so, and has been testing it in my manager's game project to field test. It uses concept similar to AudioRandomContainer, able to wrap each AudioClip in a new container that allows per-clip volume adjustment, randomized play, and whatnot. But it has editor tooling to automatically wraps every single AudioClip into the wrapper asset. As a bonus, if you named your audio clips like Foo-1 Foo-2 Foo-3 you get only one Foo wrapped asset that is already setup to randomize the play between 3 versions.

At one time (2 years ago?) the plugin even wire up playable graph like how ARC is doing here. But Unity is so buggy with it (e.g. FMOD error spam I can't make any sense when a lot of audio is played through playable system.) It is clearly not something I can sell to anyone. I actually had my own cases that was unresolved, but since they decommissioned fogbugz and I didn't capture any screenshot I have nothing to show you other than these.

I had to implement "compatibility mode" that turns the entire plugin into essentially PlayOneShot machine. Then life happened, fast forwarded to Unity 6 they came out with what was said in this article. Now, I want to continue developing this plugin, I'm thinking should I use AudioRandomContainer instead of "my class" for the wrapper?

After this entire research, the answer is likely no.

My Evaluation

AudioRandomContainer looks very feature-rich and almost made me wanted to wrap every single AudioClip in my project into AudioRandomContainer. But the opaqueness of the class and how it is playable-backed made me hesitate. The asset being only able to create one by one by hand reliably also discourage me from using it. What if I spent time setting everything up in ARCs and now I found the same FMOD errors later?

For now I will recreate a similar AudioClip wrapping system, except that it should eventually leads to the battle tested PlayOneShot. It's too risky to go all in on ARCs right now. The first step I'd like to see from Unity would be making the class not internal. And at least each AudioContainerElement should be accessible by script.
